Threaded Socket Cable Waterproof Connector Plug Panel Mount IP68 Wk29 Pin

Name: Threaded Socket Cable Waterproof Connector Plug Panel Mount IP68 Wk29 Pin
Brand: WONKEDQ，WKDQ
Price: 1 USD

Quality Threaded Socket Cable Waterproof Connector Plug Panel Mount IP68 Wk29 Pin wholesale

Brand Name : WONKEDQ，WKDQ

Model Number : WK11

Certification : CE/RoHS/TUV/ISO 9001

Place of Origin : China

MOQ : 1pcs

Payment Terms : Western Union, L/C, T/T, MoneyGram,Paypal

Supply Ability : 1000000 Pieces/Month

Delivery Time : 2-7 work days

Packaging Details : box

Interface Type : Threaded Coupling

Contact surface material : Brass with Gold Plating

Shell : PC, Nylon66, Fire Resistance: V-0

Specification : Cable outer diameter range: 13-16mm

Temperature Range : -40°C ~ +85°C

Termination : Solder

Customized : Opposite Direction Can Be Customized

Mating Cycle : 500

Contact Now

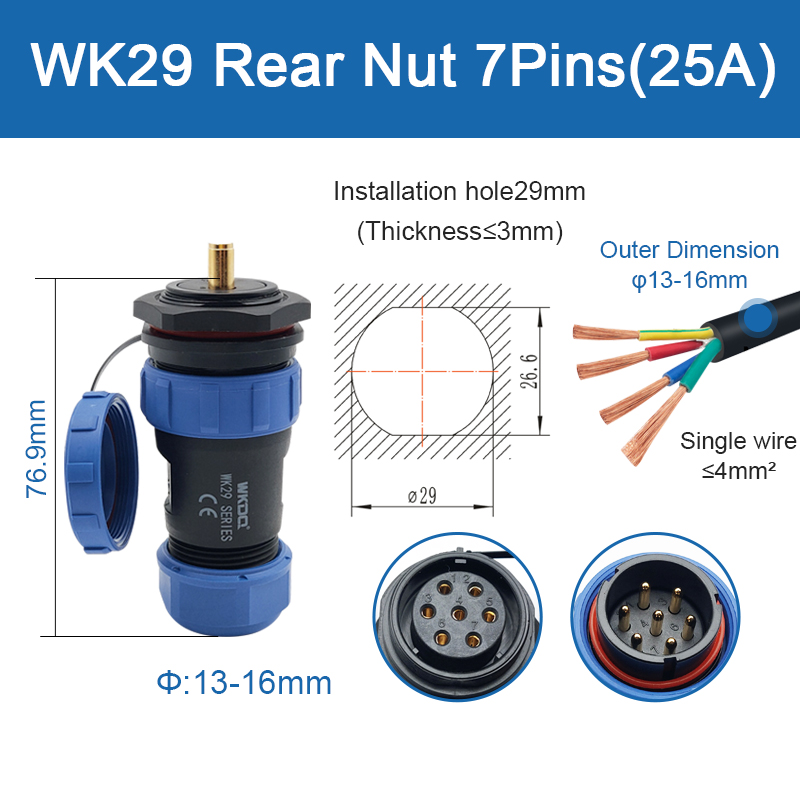

Wk29 Waterproof Rear Nut Threaded Couplings Connector

The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP68 Sealing caps are available for both cable connector and panel connector.

1) number of contacts: 2 -26 gold plated contacts

2) cable outer diameter acceptance: type I: 13-16mm

3) CE, ROHS approval

Coupling	Threaded
Shell material	PC, Nylon66, fire resistance: V-0
Insert material	PPS, max temperature 260 ℃
Contact material	Brass with gold plating
Termination	Solder
Cable outer diameter range	13-16mm
IP rating	IP68
Mating cycle	500
Temperature range	-40℃ ~ + 85℃
Insulation resistance	2000 M Ω

Threaded Socket Cable Waterproof Connector Plug Panel Mount IP68 Wk29 Pin

FAQ

Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
