JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass

Name: JPTV 25 Push In Terminal Block 4mm Side Entry Feed Through Nickle Plated Brass
Brand: WKDQ
Price: 1 USD

Quality JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass wholesale

Brand Name : WKDQ

Model Number : JPTV 2.5

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Type No. : JPTV2.5

Country of origin : China

Wire cross section,solid cable : 0.14-4mm²

Wire cross section,soft cable : 0.14-2.5mm²

Packing unit : 100PCS/BOX

Net weight : 5.79g/pc

Contact Now

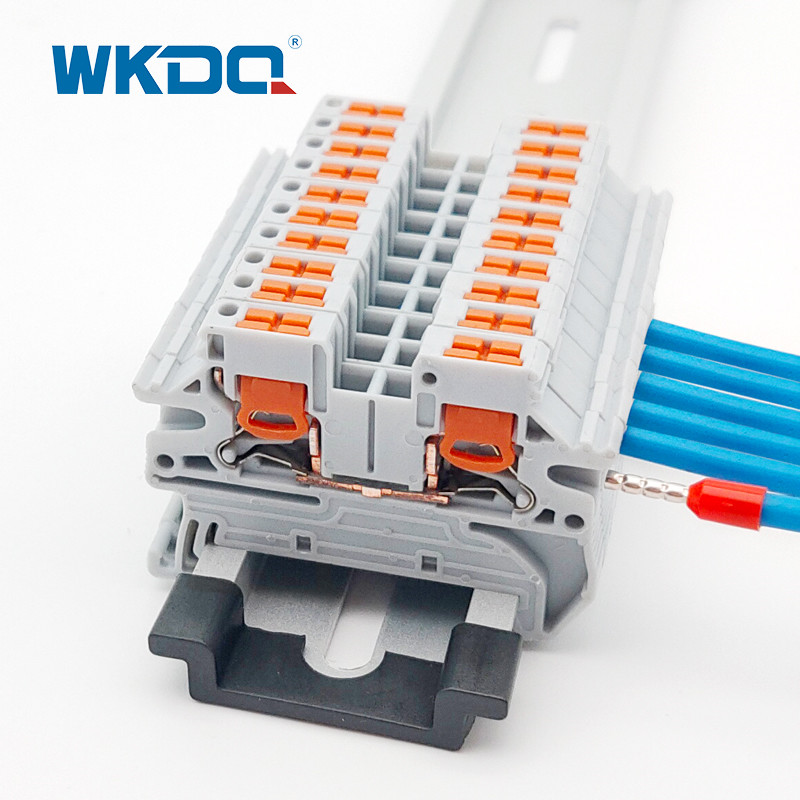

JPTV 2.5 Side entry Feed Through / Push In Terminal Block

1. DESCRIPTION

This new design PUSH IN terminal blocks, wiring side entry with their simple handling and compact size allow. Saving space and wiring time.

Made from V0 Anti flamming PA 66, Nickle plated Brass.

Tool-free wiring of conductors with ferrules or solid conductors.

The compact design and side entry way make the wiring clearly.

Simply pressing the orange push bottom to make the contact open and the conductor can be removed.No need to operate by any special tools.

Reliable and safe connection.

All types of materials are guaranteed in quality.

Vibration proof.

Automatic contact spring.

Shock resistance & Corrosion resistance.

Suitable for various applications.

The insertion force can be saved by 50%.

With universal foot which can be installed on Din Rail NS 35.

Accessories: End covers, End clamps, Marker strips, Plug-in bridges, etc.

2.TECHNICAL PARAMETERS

Model Number	JPTV 2.5
Color	Grey,other color can be customized
Length/Height/Wide (mm)	49.4/35.2/ 5.2
Connection method	Push in connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	800V/24A
Cross section, solid/soft Cable	0.14-4mm² / 0.14-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM is supporting
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
